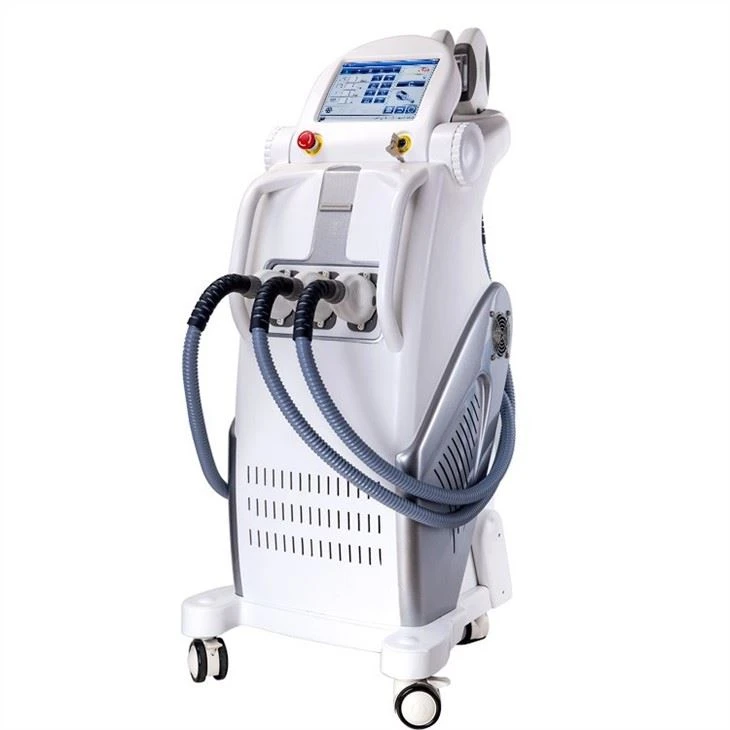

Elight IPL SHR Hair Removal Machine Application
1) 750-1200nm: Hair Removal (Skin Type IV)
2) 690-1200nm: Hair Removal (Skin Type III)
3) 640-1200nm: Hair Removal (Skin Type I & II ) ; Wrinkle Removal
4) 590-1200nm: Pigmentation and Vascularity; Skin Rejuvenation
5) 560-1200nm: Vascular and Pigmented Lesions; Skin Rejuvenation
6) 530-1200nm: Skin Rejuvenation; Superficial Vascular Lesions
7) 510-1200nm: Superficial Vascular Lesions
8) 480-1200nm: Light Pigmentation
9) 430-1200nm: Acne
10) RF Treatment: Skin Tightening and Face Lifting
Machine Specification
IPL Peak Power | 3500W |
Wavelength | SHR 650nm-950nm; Elight 430/530/640-1200nm standard;IPL530~1200nm480/560/590/690/750-1200nm optional |
Energy Density(Fluence) | 1-26J/cm²(SHR), 1-60J/cm²(Elight) |
Spot Size | 15x50mm²(SHR), 15x35mm²(Elight), 10x40mm² (IPL)(12x33mm?, 10x40mm² optional) |
Pulse Duration | 1-15ms |
Pulse | Single |
Pulse Repetition Rate | 1-10Hz (SHR) |
Timer | 1-30ms |
Cooling | Air + Water + Sapphire contact cooling (-4'C~+4°) |
Stand-by Working | Continuously for 12 hours |
Display | 10.4" True Color LCD Touch Screen |
Net Weight | 60KG |
Dimensions (W x L x H) | 63x53x126cm |
The advantage of Elight IPL SHR Hair Removal Machine
1) Medical CE&ISO13485 approved 510K FDA for E-light is in the processing.
2) 12 different languages
3) Interchangeable Xenon lamp cartridge; guarantee 70.000 shots.
4) Professional Mode& Simple Mode, simple mode specially for beginner, very easy to operate, professional mode for the doctors, Best-of-Both.
5) 3 different spots size handpieces, every handpiece can do 6 kinds of treatments
6) 3 handpieces can work independently
7) IC Card available
8) 1 years warranty
9) Three cooling systems make treatment safe and comfortable for the patients
10) Modular inner design, convenient for repairing.
11) Alert alarm for low water level, water temp, water flux and refrigeration
12) Foot-switch and stand available
Elight IPL SHR Hair Removal Machine Handpiece Details
1.Counter: count the flash number
2.Switches: one switches on handle
3.Spot size: 3 spot size for option:12*33mm², 15*50mm²,15*35mm²
4.Lamps: imported from Germany,70,000-100,000shots lifetime.70.000 shots guarantee under normal operation
5.Easy to administer with an ergonomic handpiece design;
6.With multiple exchangeable Filters to ensure easy and effective singular and combined therapeutic treatment;
7.Every Elegant IPL(E-light) handpiece is designed for maximum effectiveness with minimal patient discomfort.
8.Double-face concave design with Card slot ,easy to install and more stable
